PM Polarization Maintaining Fiber Optical Jumper Cord High Extinction Ratio

Product Categories
Fuji Science & Technologies (Wuhan) Co., Ltd.
Contact Now

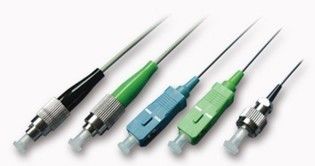

PM Polarization Maintaining Fiber Optical Jumper Cord High Extinction Ratio

  • 1
  • 2

Brand Name : Fujioptic

Model Number : SM/MM

Certification : ROHS, REACH, UL, ISO

Place of Origin : Wuhan, China

MOQ : 1pcs

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 10,000 pcs per month

Delivery Time : 3~7 work days

Packaging Details : plastic zip bag and carton

Operating Wavelength : 1550nm

Connector Type : FC,SC

PER(dB) : Typically ≥23dB

Fiber Type : PANDA Fiber

Cable OD : Φ0.9 , Φ2 , Φ3mm

Fiber Length Tolerance : ±10%

Contact Now

PM Polarization Maintaining Fiber Optical Jumper Cord High Extinction Ratio

Feature
> High extinction ratio
> Low insertion loss and high return loss
> UPC and APC polishing available
> Meet IEC connector specifications
Application
> Fiber Optic Gyroscope
> Laser Doppler Velocimeter
> Measurement Sensors
> Testing and instrument systems
> Coherent Transmission


Technical Specification

Operating Wavelength (nm)1550
Connector TypeFC,SC
UPC or APC Polishing
Insertion Loss (dB)APC≤0.3
UPC≤0.2
Return Loss (dB)APC≥ 60
UPC≥ 50
PER(dB)Typically ≥23
Key Type for FCR:Reduced 1.97~2.02mmN:Wide 2.09~2.14mm
Key PositionSlow AxisFast Axis
Fiber TypePANDA Fiber
Cable OD(mm)Φ0.9 , Φ2 , Φ3
Fiber Length Tolerance±10%
Environmental Temperature- 20 ~ 70℃
Storage Temperature- 45 ~ 85℃


Ordering Information
PM - FC/UPC (N) - FC/UPC (N) / 1550 /Φ2 / L - SA
1 2 3 4 5 6 7 8

1 Connector TypeFC , SC , ST , MU , LC
2 Polish TypeUPC, APC
3 Connector TypeFC, SC,ST, MU, LC
4 Polish Type UPC , APC
5 Fiber ModeSM=Single mode , MM=Multimode
6 DiametreΦ3 , Φ2 ,Φ0.9
7 Patchcord LengthL = 1 , 2 , 3 ...meter,or as required
